Geberit Sigma Flush Button STL File: Custom Tile Design (Digital Download)

This is a digital STL file, not a physical product.

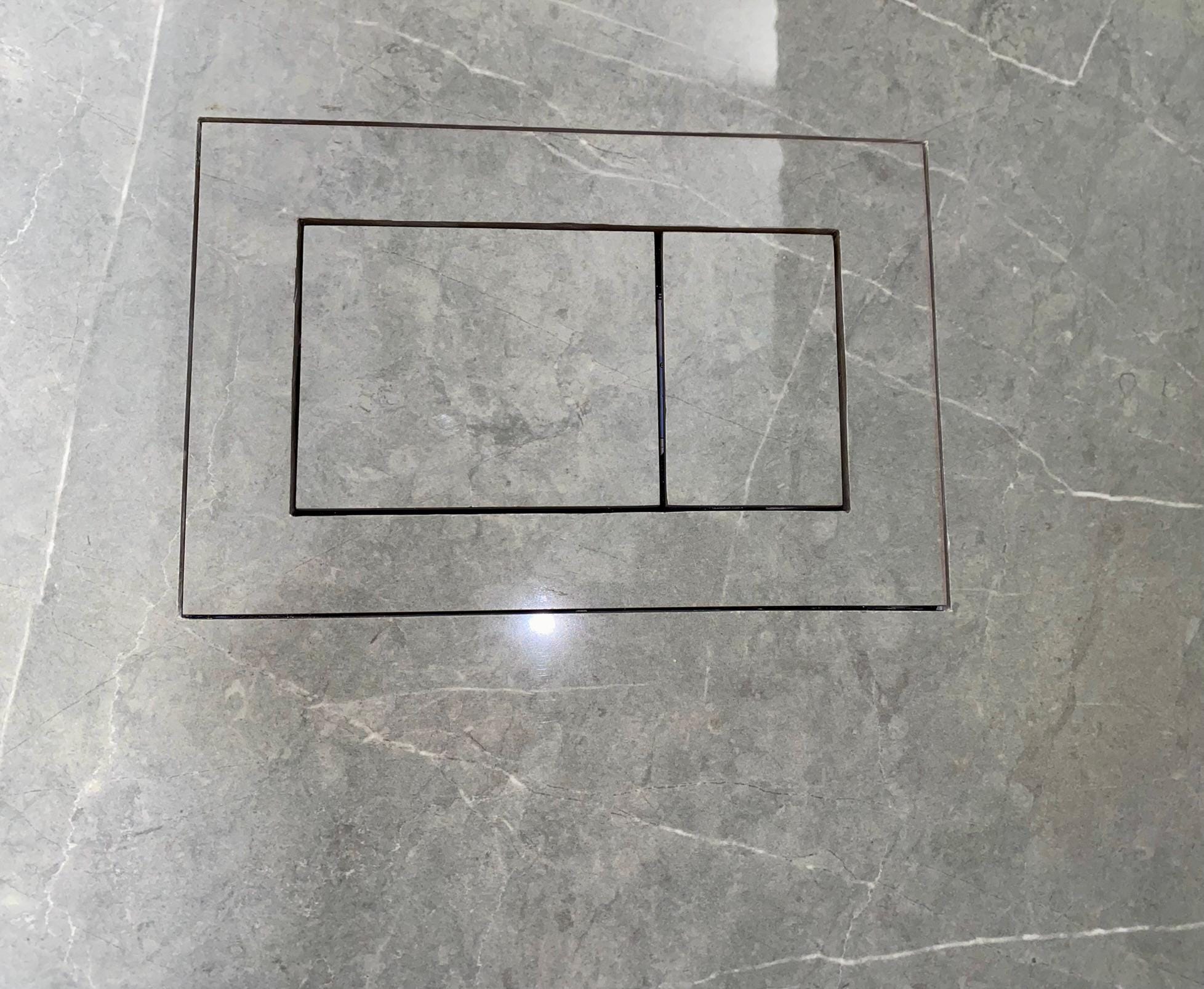

Upgrade your bathroom with a custom tile-compatible flush button for Geberit Sigma flush plates. This STL model allows you to attach tiles directly onto the button for a seamless and unique design.

Why choose this model?

STL file – digital download, no physical product included

Print-ready – includes built-in supports for easy 3D printing

Easy assembly – integrated breakaway clips print with the frame and snap off after printing

Fully customizable – add any tile to match your bathroom style

Final print size: The finished part measures 240 × 160 mm, so you will need a 3D printer with a build plate at least this size or larger.

After purchase, you will receive a high-quality STL file, ready for 3D printing.

Important: This is a digital file. No physical item will be shipped. You will need a 3D printer with a build area of at least 240 × 160 mm to print the model at full scale.

For any questions or custom requests, feel free to reach out.

3D Printing Instructions for STL Files
1. Inner Housing (Base Frame for Button Installation)
– Pause the print at layer 60 to insert nuts.
– Use M6 nylon lock nuts to prevent loosening over time.
– The housing includes built-in mounting clips for easy attachment to the Geberit flush system.
Additional hardware required:
* 4x M6 flat head screws
– Adjust the screw length based on your wall thickness.
– I used 30 mm length screws for my setup.
* 4x neodymium disc magnets
– Dimensions: Ø 15 mm, height 3 mm
– Strength: holds approx. 3.7 kg
– Type: N52, nickel-plated
2. Button (Flush Plate)
– You may disable bottom layers when slicing to improve silicone adhesion.
– My personal print settings for added strength:
* 5 bottom layers
* 5 top layers
* 4 wall loops
– Recommended filament: PETG for durability and flexibility.
